Understanding Rail Systems

Picatinny, Weaver, and Dovetail

When it comes to mounting accessories like optics, scopes, or grips on firearms, the rail system plays a crucial role. The three most popular types are Picatinny, Weaver, and Dovetail. Each has its own unique design, with benefits and limitations depending on the firearm and its intended use. Let’s break them down.

Picatinny Rail System – The Universal Choice

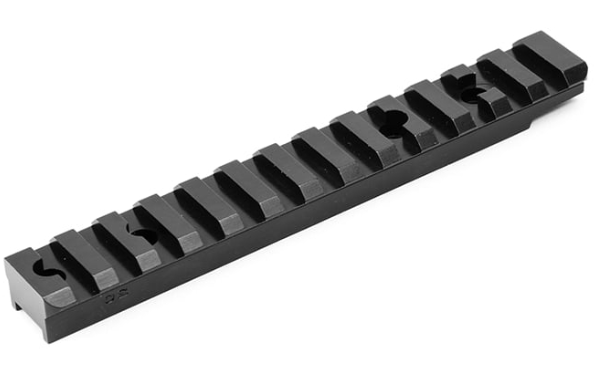

The Picatinny rail, often referred to as MIL-STD-1913, is the military standard for mounting optics and accessories. It's known for its standardized design, which ensures universal compatibility across all firearms and accessories designed for it.

Key Features:

• Standardized Design: The spacing between the slots is exactly 0.206 inches (5.23mm), which ensures that accessories fit securely and consistently.
• Deep Recoil Grooves: These grooves are deeper than those on other rails, which provide a more stable attachment for accessories, even under heavy recoil.
• Enhanced Compatibility: Whether you’re mounting scopes, red dot sights, or grips, a Picatinny rail ensures your accessories will stay in place.



Why Choose a Picatinny Rail for High-Recoil Firearms and Tactical Applications?

The Picatinny rail system is the preferred choice for those requiring a robust, standardized mounting platform. Designed for repeatability and durability, Picatinny rails excel in high-recoil firearms, ensuring optics and accessories remain secure and return to zero even after heavy use.

Moreover, the widespread standardization of Picatinny rails across thermal optics and night vision devices ensures seamless integration, making it the go-to choice for professional and military users who require rapid, repeatable mounting across multiple platforms.

Drawbacks:

• Bulkier and heavier than other rail types.
• Not always needed for smaller, low-recoil firearms.

Weaver Rail System – Versatile but Less Standardized

The Weaver rail system is similar to the Picatinny system but is less standardized. It offers versatility, especially for hunting rifles and sporting firearms, but its compatibility isn’t as consistent as Picatinny.

Key Features:

• Irregular Slot Spacing: Unlike Picatinny rails, Weaver rails have slots that can be spaced unevenly, which may cause compatibility issues with some accessories
• Lower-Profile Grooves: The recoil grooves are not as deep as Picatinny, but they still provide a secure fit for most accessories.
• Accessory Compatibility: Many Weaver accessories can fit on a Picatinny rail, but not all Picatinny accessories will work on a Weaver rail due to the lack of standardized slot spacing.

Best For:

Hunting rifles, sporting firearms, and general use where standardization isn’t a major concern.

Drawbacks:

• The lack of standardized spacing can lead to compatibility issues.
• Not as widely used in modern military and tactical applications as Picatinny.

Dovetail Rail System – Lightweight and Compact

The Dovetail rail is typically used on smaller firearms like airguns and .22 calibre rifles. Its simpler, lightweight design makes it ideal for firearms where weight and compactness are important.

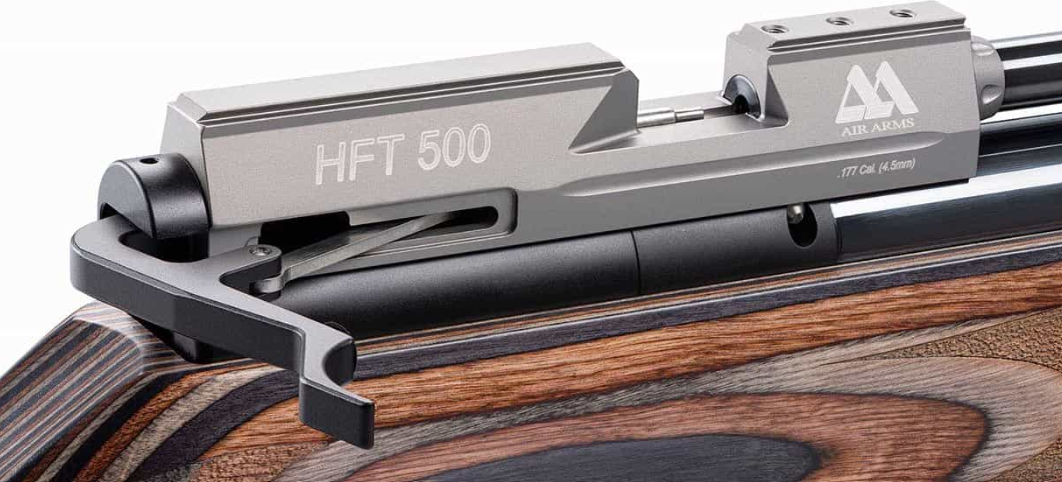

_{{Image taken from Airarms.co.uk}}

Key Features:

• Angled Groove Design: Unlike the flat-bottomed slots on Picatinny and Weaver rails, dovetail rails have angled grooves that securely clamp accessories in place.
• Common Sizes: The most common widths are 3/8-inch (9.5mm) and 11mm, with some variations depending on the manufacturer.
• Low Profile: Dovetail rails are low-profile and lightweight, perfect for small firearms or airguns.

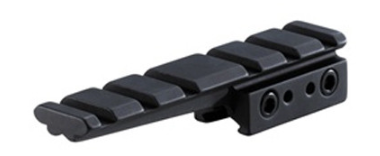

• Mounting Compatibility: Dovetail accessories require special scope rings or adapters to work with Picatinny or Weaver rails.

Best For:

Airguns, rimfire rifles, and small-calibre firearms where compactness and weight are critical.

Drawbacks:

• Less accessory compatibility compared to Weaver or Picatinny rails.
• Not suitable for high-recoil firearms, as accessories can loosen or shift.

Comparing Picatinny, Weaver, and Dovetail

Here’s a simple comparison of these rail systems to help you decide which is best for your needs:

Conclusion: Which Rail Is Right For You?

• Choose Picatinny if you need maximum compatibility and durability for military or tactical purposes.
• Choose Weaver for hunting and sporting rifles where weight is a consideration, but you don’t need full Picatinny standardization.
• Choose Dovetail for lightweight, compact setups on small-calibre firearms like airguns and .22 rifles.
