The Effect of Eye Pupil on Rifle Scope Performance

When selecting a rifle scope, shooters often focus on magnification, reticle type, and lens coatings. However, one of the most overlooked yet crucial factors is the relationship between the exit pupil of the scope and the shooter’s own eye pupil. This relationship directly affects image brightness, resolution, and the effective performance of the scope under different lighting conditions. Failure to understand this relationship can lead to suboptimal performance, making it difficult to acquire targets quickly and precisely, especially in varying light conditions.



The human eye adapts to different lighting conditions by dilating or contracting the pupil. In bright light, the pupil constricts to around 2-3mm, while in low-light conditions, it can expand up to 7mm or more in younger individuals. However, this maximum dilation diminishes with age, meaning that an older shooter may only reach a dilation of around 5mm even in complete darkness. This natural physiological limitation directly impacts how much of the available light from a rifle scope can enter the eye and contribute to image clarity and brightness.

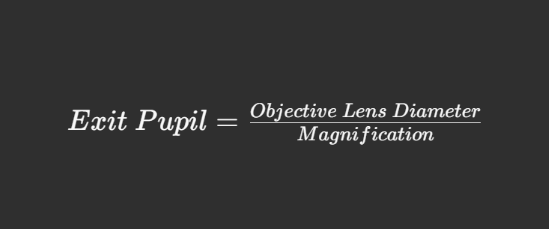

The exit pupil of a rifle scope is calculated using the formula:





For example, a 4-16x50 scope has an exit pupil that varies with magnification. At 4x magnification, the exit pupil is 12.5mm (50mm/4), while at 16x magnification, the exit pupil shrinks to just 3.1mm (50mm/16). This variance illustrates how increasing magnification reduces the exit pupil, which can significantly affect image quality and ease of use, particularly in low-light environments.



If the shooter’s eye pupil is smaller than the exit pupil of the scope, a portion of the available light from the scope is blocked and does not enter the eye. This results in a reduction in the effective aperture, meaning the shooter is not fully utilizing the scope’s objective lens. The practical implications of this are most noticeable in dim conditions, where light is already limited, and any additional loss can severely hinder target visibility.



The reduction in brightness is one of the most immediate effects. Since only a fraction of the scope’s light transmission is making it through the constricted eye pupil, the image appears dimmer than it would if the entire exit pupil were used. This limitation is particularly relevant for shooters engaging targets at dawn or dusk, as well as those operating in heavily wooded areas with minimal ambient light.



Additionally, a smaller-than-ideal exit pupil can impact target acquisition speed. When light levels are low, and the eye is struggling to capture enough light, the shooter may experience difficulty quickly identifying a target, especially if the scope's field of view is already narrow due to high magnification. This delay in target acquisition can be detrimental in hunting or tactical scenarios where rapid reaction times are necessary.



Another critical effect of an undersized eye pupil is the reduction in effective aperture. If a shooter’s pupil can only open to 4mm, but the scope’s exit pupil is 7mm, the shooter is effectively using a 4mm aperture rather than the full capability of the scope’s objective lens. This results in an image that is not only dimmer but also slightly less detailed, as the amount of light contributing to resolution and contrast is reduced.



Conversely, if the shooter’s eye pupil is larger than the scope’s exit pupil, the eye will still receive the full light transmission, but it may introduce challenges related to alignment and eye strain. As magnification increases, exit pupil decreases, and if it becomes too small (below 3mm), the shooter must precisely align their eye within a restricted zone to avoid vignetting or blackouts in the image. This difficulty in maintaining a proper sight picture can become fatiguing over extended shooting sessions.



A narrower exit pupil also restricts the amount of ambient light that can reach the eye. While this is less problematic in bright conditions, it becomes a significant issue in low light, where every fraction of a millimetre counts in gathering enough light for a usable image. Shooters using scopes with high magnification and small exit pupils often find that their field of view is noticeably reduced, further complicating tracking and target acquisition.



When the exit pupil is larger than the shooter’s eye pupil, the effective aperture of the system is effectively reduced. This change impacts how much light reaches the eye and influences image brightness and clarity.



For example, a 10x50 scope with a 5mm exit pupil used by a shooter with a 4mm eye pupil essentially functions as a 10x40 scope, diminishing the scope’s performance in low-light environments. Similarly, a 6x42 scope with a 7mm exit pupil used by a shooter whose eye can only dilate to 5mm results in a performance closer to that of a 6x30 scope, meaning the shooter is not taking full advantage of the larger objective lens’s light-gathering ability.



This phenomenon highlights the importance of choosing an exit pupil that closely matches the shooter’s maximum eye pupil size in expected lighting conditions. A mismatch leads to lost light and decreased performance, with little benefit from oversized exit pupils beyond what the eye can physically utilize.



Understanding the interaction between exit pupil and eye pupil is crucial when choosing a rifle scope for specific applications. For daylight shooting, a small exit pupil between 2-4mm is generally sufficient because the shooter’s pupil will be naturally constricted. This setup ensures adequate brightness and clarity while minimizing the risk of vignetting.



For low-light shooting, such as dawn or dusk hunting, a larger exit pupil in the 5-7mm range is ideal. This allows the shooter’s fully dilated eye to receive the maximum amount of light from the scope, improving image brightness and target visibility. A larger exit pupil is particularly advantageous in scenarios where rapid target acquisition is necessary, as it provides a greater margin for alignment errors, allowing the shooter to maintain a clear sight picture without precise positioning.



When using high-magnification scopes, it is crucial to ensure that the exit pupil does not drop below 3mm, as smaller exit pupils can lead to excessive eye strain, reduced field of view, and difficulty maintaining a full, uninterrupted sight picture. Shooters engaging in long-range precision shooting should consider these factors when balancing magnification, objective lens size, and overall scope performance.



The interplay between a shooter’s eye pupil and a rifle scope’s exit pupil is fundamental to achieving optimal performance in the field. Selecting a scope with an exit pupil that closely matches or slightly exceeds the shooter’s expected eye pupil size in different lighting conditions ensures maximum brightness, clarity, and ease of use. By considering these factors alongside magnification and objective lens size, shooters can make more informed decisions that enhance their overall effectiveness.



Understanding the effects of eye pupil size on effective aperture further enables shooters to fine-tune their equipment for specific scenarios, whether hunting in low light, engaging in tactical operations, or participating in long-range precision shooting. Mastering these optical principles leads to improved accuracy, faster target acquisition, and a more seamless shooting experience in any environment.
